Specifications
| Displacement @50Hz Max | 0.058 |
| Pressure Ultimate | 5.00 |
| Noise / Sound Level | 76.00 db(A) |

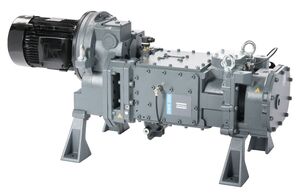

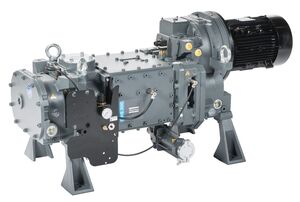

DWS 200 Dry Screw Vacuum Pump, (@60 Hz), 0.05 mbar(a), Water Cooling
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| 3002615063 | |
| 3002615064 | |
| 3002615068 | |
| 3002615069 |
Dry Screw Pumps
Vacuum dry screw pumps are positive displacement pumps that are designed to operate in rough to medium vacuum level application . These products do not use any lubricant in the pumping mechanism to seal therefore they are defined as dry compressing machines. They offer high pumping speed and can handle a wide range of gases and vapors. These pumps are ideal for applications in the industrial, chemical, pharmaceutical, and semiconductor industries, among others, where oil-free and contamination-free vacuum is required. They have a compact design and require minimal maintenance, making them a reliable and cost-effective solution for many vacuum applications
DWS
The DWS dry screw pumps feature an innovative design which creates a new benchmark in the screw pump market with second-to-none contaminant handling capability in the harshest industrial conditions. Available in Air and Water-cooled variants, an intricate piece of engineering, built to the exacting standards and quality demanded by our customers, this dry screw pump provides a trouble-free and cost-effective solution to meet your needs
DWS 200
Single stage dry screw pump, ultimate pressure down to 0.01 mbar(g)
Features and Benefits
- The Atlas Copco DWS range of dry screw vacuum pumps features an innovative design with variable pitch dry screws. Engineered to deliver clean and reliable vacuum flow in demanding industrial applications and industries, the DWS series are one of the most robust series of dry vacuum pumps. Available in water-cooled and air-cooled variants, the DWS range - DWS 200, DWS 300, and DWS 500 is built to handle harsh contaminants in challenging and harsh industrial environments
General Product Information
| Dimension Length | 1.20 |
| Dimension Height | 0.567 |
| Dimension Width | 0.463 |
| Connection Inlet Flange | DN 63 ISO-F |
| Noise / Sound Level | 76.00 db(A) |
| Power Supply Frequency | 60 Hz |
| Power Supply Phase | 3-Ph |
| Cooling Method | Water Cooling |
| Power Supply Voltage | 3Ph 230/460V 60Hz |
| Connection Cooling | 1/2" BSPP (G) Female |
| IP Rating | IP54 |
Performance Data
| Pressure Ultimate | 5.00 |
| Power Consumption Max | 6400.00 |
| Displacement @50Hz Max | 0.058 |
| Power at Ultimate | 4100.00 |
Classification
| Classification High / Medium / Rough Vacuum pump | Medium Vacuum Pump |
| Classification Dry or Wet Pump | Dry pump |
| Classification Vacuum Pump Technology | Dry Screw Pump |
| Classification Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
Operation Conditions - Limitations
| Altitude Max | 1000.00 |
| Temperature Cooling Water Max | 35.00 |
| Flow Cooling Water Min | 1.333 × 10⁻⁴ |
