Spécifications
| Déplacement @60Hz Max | 3.889 × 10⁻³ |
| Pression ultime | 12000.00 |
| Puissance totale nominale @60Hz | 450.00 |
| Noise / Sound Level | 66.00 db(A) |

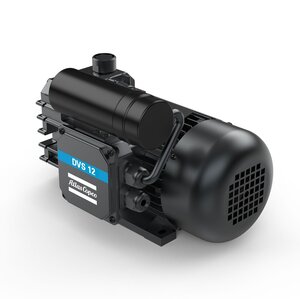

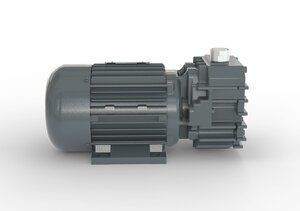

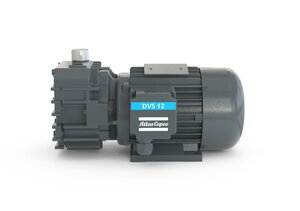

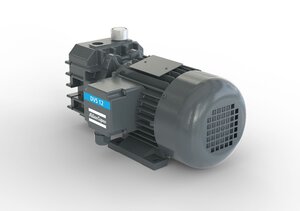

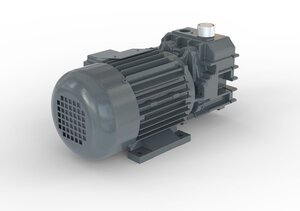

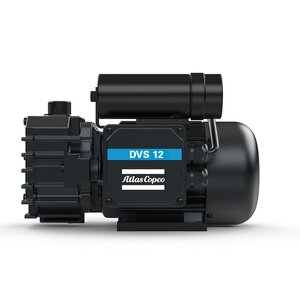

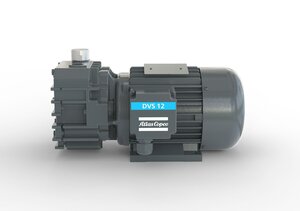

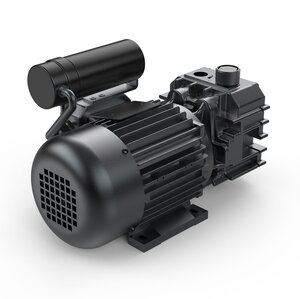

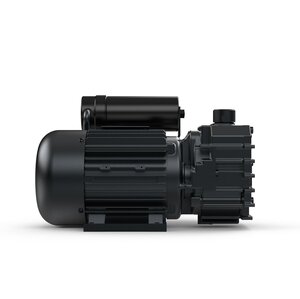

DVS 12 Dry Vane Vacuum Pump, 0.45 kW (@60 Hz), 120 mbar(a), Refroidissement par air
Ajouté à votre panier
Dry Vane Pumps
We introduce our new range of oil-free vacuum pumps – the DVS series. These are single-stage dry vane vacuum pumps which do not require oil to operate. This ensures a clean operation, free of emissions and no contamination to the process. These dry rotary vane vacuum pumps are designed to be robust, simple, clean, compact, and silent suited for rough industrial applications with high efficiency and competitive initial investment costs.
We offer dry vane vacuum pumps with nominal suction flow from 5 m³/h to 140 m³/h and ultimate vacuum level up to 120-150 mbar(a) depending on the model.
General Product Information
| Dimension Longueur | 0.304 |
| Dimension Hauteur | 0.174 |
| Dimension Largeur | 0.182 |
| Bride d'entrée de connexion | BSPP 1/2" (G) femelle |
| Noise / Sound Level | 66.00 db(A) |
| Fréquence de l'alimentation | 60 Hz |
| Poids | 14.50 |
| Phase d'alimentation | 1-Ph |
| Méthode de refroidissement | Refroidissement par air |
| Tension d'alimentation | 1Ph 115V 60Hz |
Classification
| Classification pompe à vide haute/moyenne/primaire | Pompe à vide primaire |
| Classification de pompe sèche ou humide | Pompe sèche |
| Classification de technologie de pompe à vide | Pompe à palettes sèche |
| Classification de la plage de pression du produit | Rough Vacuum: 1000 mbar - 1 mbar |
Performance Data
| Pression ultime | 12000.00 |
| Puissance totale nominale @60Hz | 450.00 |
| Vitesse de rotation nominale 60Hz | 1700.00 |
| Déplacement @60Hz Max | 3.889 × 10⁻³ |
Operation Conditions - Limitations
| Pression absolue Entrée Continue Max | 1.013 × 10⁵ |
| Altitude max. | 1000.00 |
| Température du gaz d'admission max. | 40.00 |
Environmental Conditions
| Température ambiante de fonctionnement max. | 40.00 |
| Température ambiante Fonctionnement Min | 0.000 |
| Température ambiante de stockage min. | -20.00 |
| Température ambiante de stockage max. | 50.00 |
- 6996025405_AIB DVS 5-140_BR.pdf - Brazilian Portuguese - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-NL-Web.pdf - Dutch - Sales Leaflet
- 6996024720_AIB_DVS_5-140_EN.pdf - English - AIB Instruction Manual
- DVS 12 3002615689.pdf - English - Dimensional Drawing
- 6996 0099 03_Vacuum Solutions Overview_new VI_Verti_LR.pdf - English - Resource Library Document
- 6996009903-ACV-Overview-brochure-Web.pdf - English - Sales Leaflet
- 6996023493-ACV-Spec-sheet-Catalouge-EN-Web.pdf - English - Sales Leaflet
- 6996025403_AIB DVS 5-140_FR.pdf - French - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-FR-Web.pdf - French - Sales Leaflet
- 6996025401_AIB DVS 5-140_DE.pdf - German - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-DE-Web.pdf - German - Sales Leaflet
- 6996025404_AIB DVS 5-140_IT.pdf - Italian - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-IT-Web.pdf - Italian - Sales Leaflet
- 6996025406_AIB DVS 5-140_RU.pdf - Russian - AIB Instruction Manual
- 6996024720_AIB DVS 5-140_ZH.pdf - Simplified Chinese - AIB Instruction Manual
- 6996025402_AIB DVS 5-140_ES.pdf - Spanish (European) - AIB Instruction Manual
- 6996023493-ACV-Spec-sheet-Catalouge-ES-Web.pdf - Spanish (European) - Sales Leaflet
| Titre du produit | Référence | Prix | Ajouter au panier |
|---|---|---|---|
| Vacuum gauge capsule dial -1 - 0 bar(e), | 8092300329 | - | |
| Vacuum gauge capsule dial 0 - 1000 mbar( | 8092300337 | - | |
| Shock mounts (DVS 5-12) | 0017000000 | - | |
| Vac. regulating valve VRV-B 1/4'' | 0017000019 | - | |
| Vac. filter IF 1/2'' (paper) | 0017000005 | - | |
| Vac. filter IF-B 1/2'' (poliester) | 0017000007 | - | |
| Inlet hose fit. IHF (DVS 12-16) | 0017000027 | - | |
| Non-ret. valve NRV-U 1/2'' | 0017000032 | - |
